DEll PowerEdge R760 Computer Server Intel Xeon 8452Y 64GB DDR5 R760 2U 2-socket Network Server Rack Server R760

Product Description

Product Parameters
Server Model Dell Poweredge R760 Server
Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology
Memory
  • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
  • Supports registered ECC DDR5 DIMMs only
Storage controllers
  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Software RAID: S160
Drive Bays Front bays:
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 WTitanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
Fans
  • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  • Up to 6 hot plug fans
Dimensions
  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Bezel Optional LCD bezel or security bezel
Open Manage Integrations
  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager
Security
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM card (optional)
Network options 1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options Up to 2 x 350 W DW and 6 x 75 W SW
Warranty 3 years
Products Description

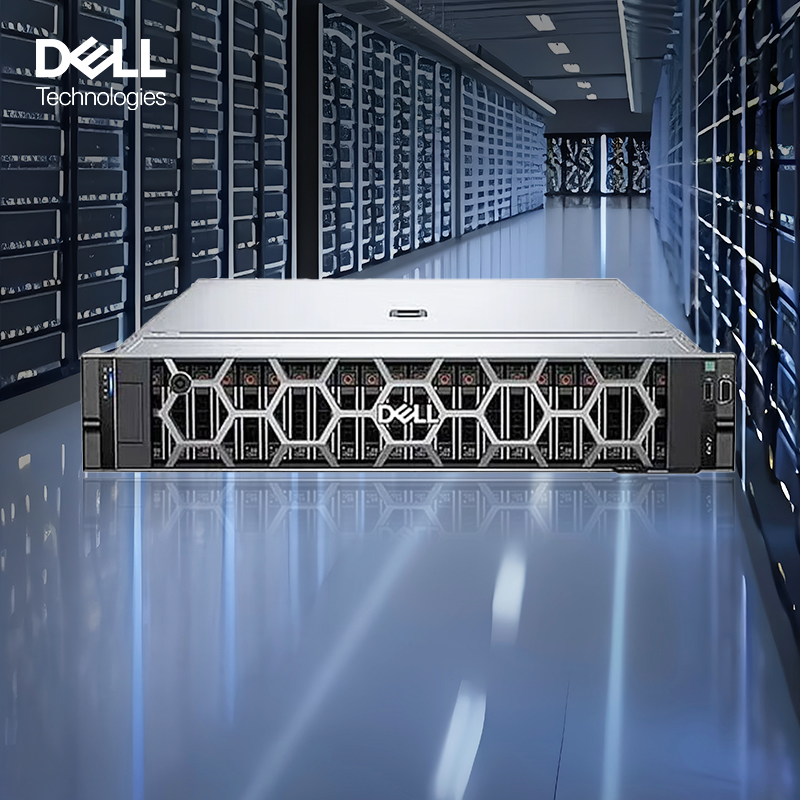

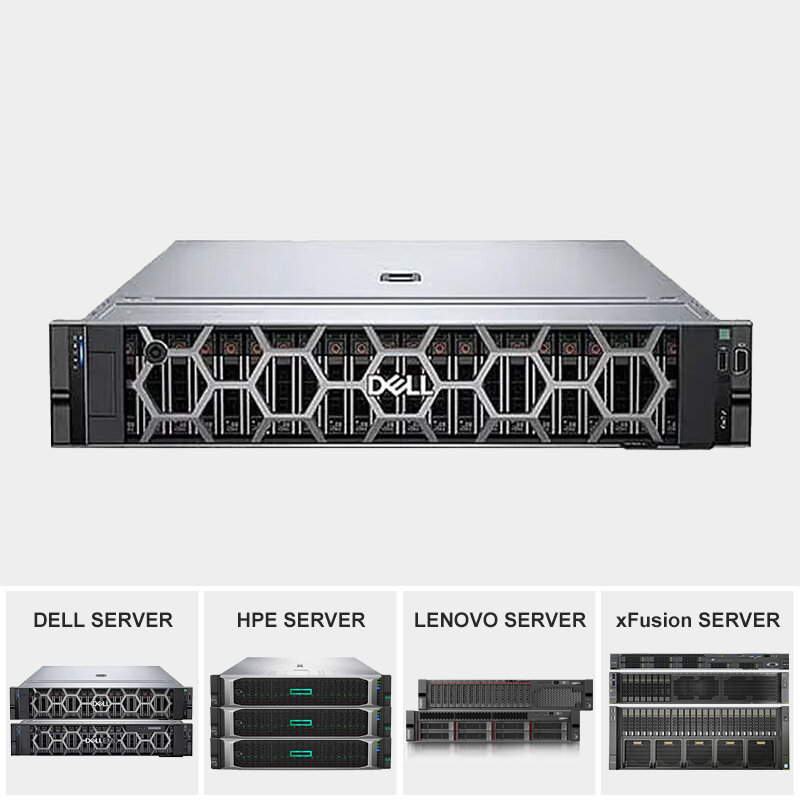

Dell PowerEdge R760 rack server

Dell PowerEdge R760 rack server

Provides performance and versatility as needed to address your most demanding applications.

The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.

Product Display
Dell PowerEdge R760 Front
Dell PowerEdge R760 Angle
Dell PowerEdge R760 Internal
Dell PowerEdge R760 Rear
Dell PowerEdge R760 Side
Dell PowerEdge R760 Inside Detail
Dell PowerEdge R760 Front Panel Open
Application Scenario
Application Scenario Detail
Company Profile
Manufacturing and R&D Facilities

As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top-tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.

As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:

  • Computing servers
  • Network storage
  • Network switches
  • CPU, RAM, HARD DRIVES, and other accessories
Exhibition
Exhibition Booth
Packing & Delivery
Package Material
Shipping Logistics
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: When can I get the quotation?
A1: We usually quote within 24 hours after receiving your inquiry. If you require immediate assistance, please prioritize contacting us via standard support channels.
Q2: What warranty coverage do you offer?
A2: Our complete hardware systems include a 3-year replacement warranty. We maintain a reliable and complete supply chain infrastructure to promptly handle any after-sales technical issues.
Q3: How do you guarantee the reliability of component parts?
A3: All critical parts, such as memory modules, utilize original brand chips and undergo rigorous diagnostic testing protocols before packaging and shipping.
Q4: Have your facilities and operations undergone verified audits?
A4: Yes. Our manufacturing units and business processes have successfully completed the SGS annual audit alongside standard platform financial inspections.
Q5: What payment channels and methods do you support?
A5: We support secure transactions through various channels, including bank card transfers, wire transfers (T/T), and other online payment processors.
Q6: What is the Minimum Order Quantity (MOQ) and how do different price tiers compare?
A6: Different products carry varying MOQs; however, we actively support both large enterprise orders and small quantity demands. Regarding pricing, while hardware configurations may look identical externally, internal components vary in specifications. We specialize in providing custom configurations at several price levels to meet different performance benchmarks.
