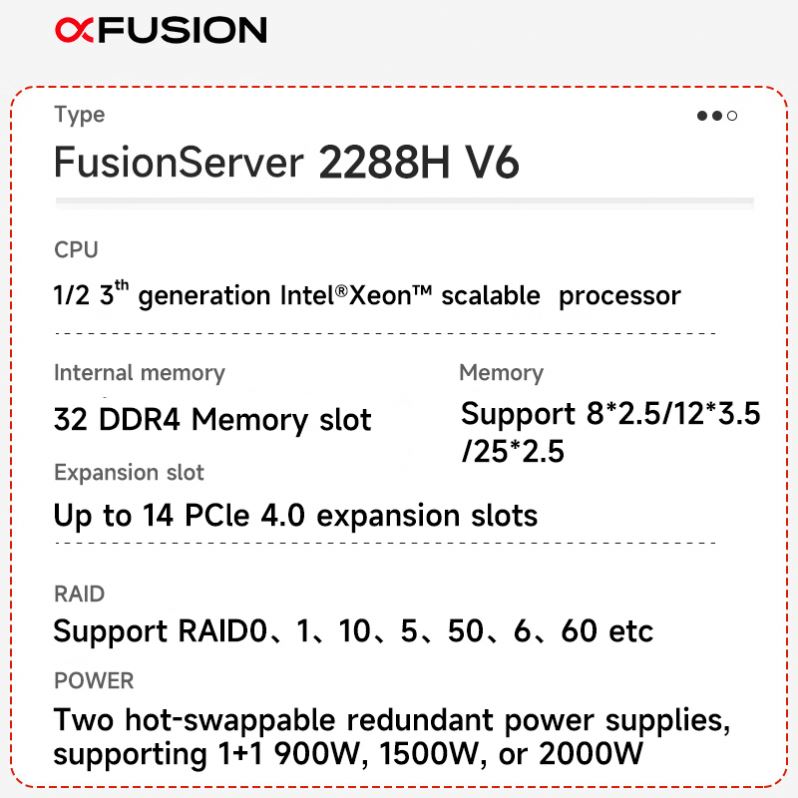

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |

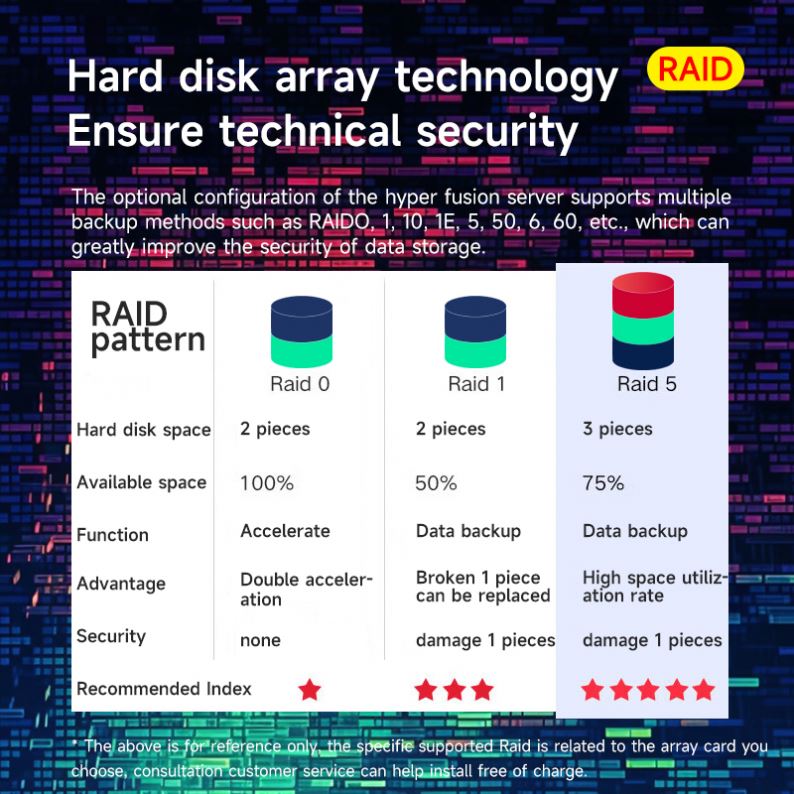

| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data protection; RAID level migration, drive roaming, self-diagnosis. |
| Network | Multiple network expansion; OCP 3.0 NICs supported; Two FlexIO card slots for network adapters; Hot-swappable. |
| PCIe Expansion | Maximum 14 PCIe 4.0 slots (including dedicated RAID card and OCP 3.0 slots). |
| Management | iBMC chip integrates one GE management port; Supports Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM remote management; Optional FusionDirector software. |
| Operating Systems | Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian. |
| Security | Power-on password, administrator password, TPM 2.0, security panel, secure boot, cover opening detection. |
| Operating Temp | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | Two hot-swappable PSUs (1+1 redundancy): 900W/1500W/2000W/3000W Platinum/Titanium AC; 1500W HVDC; 1200W DC options. |
