New xFusion 2288H V6 Cloud Server 8*2.5 Inch Drive Xeon 2*4310 2288H V6 2U 2-socket Computer AI Rack Server

Product Description

Product Display
FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.
Product Visuals

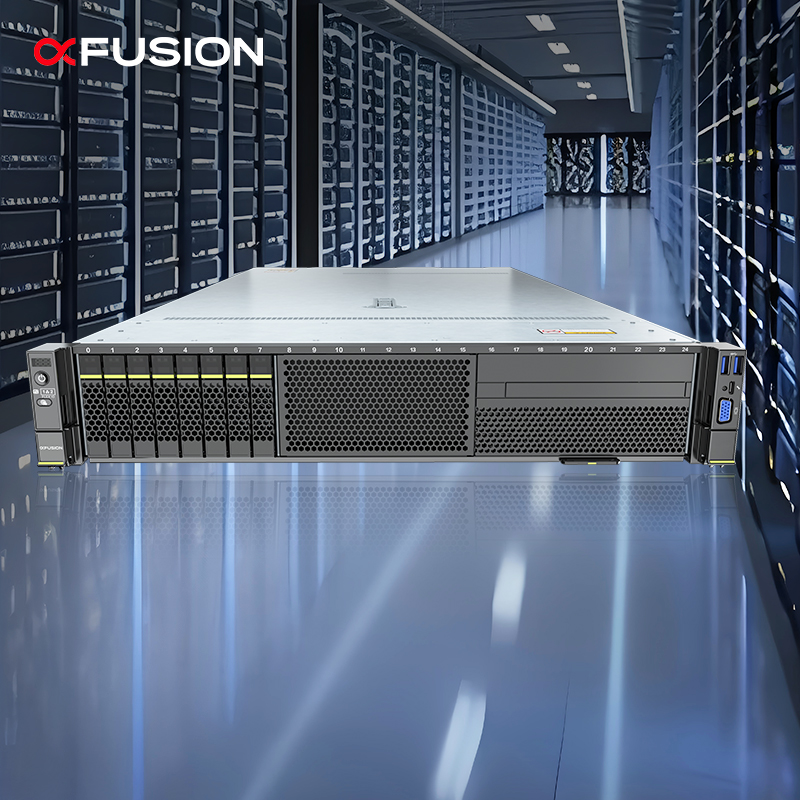

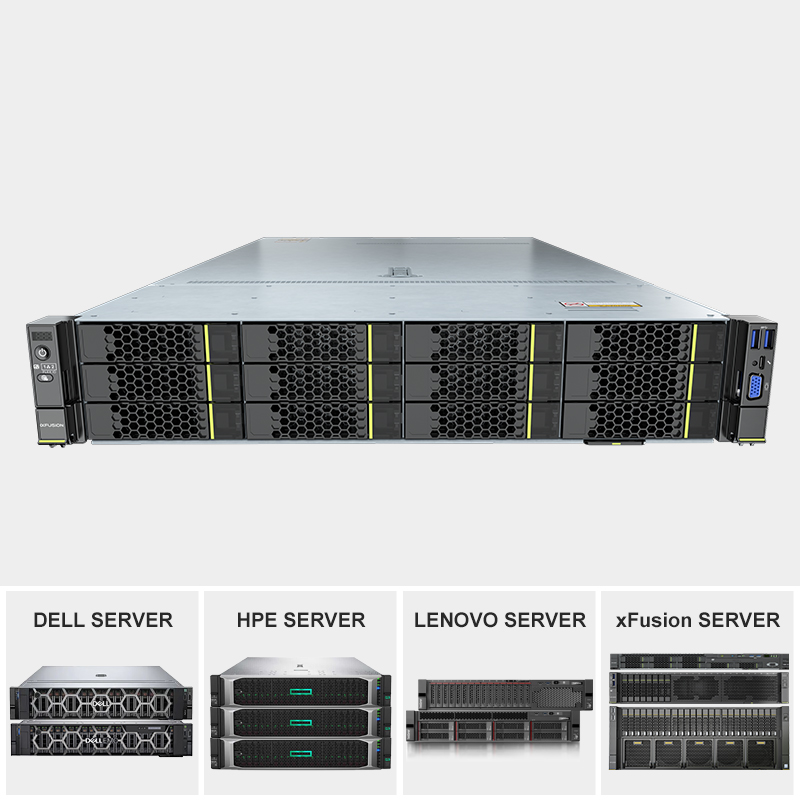

FusionServer 2288H V6 Front View

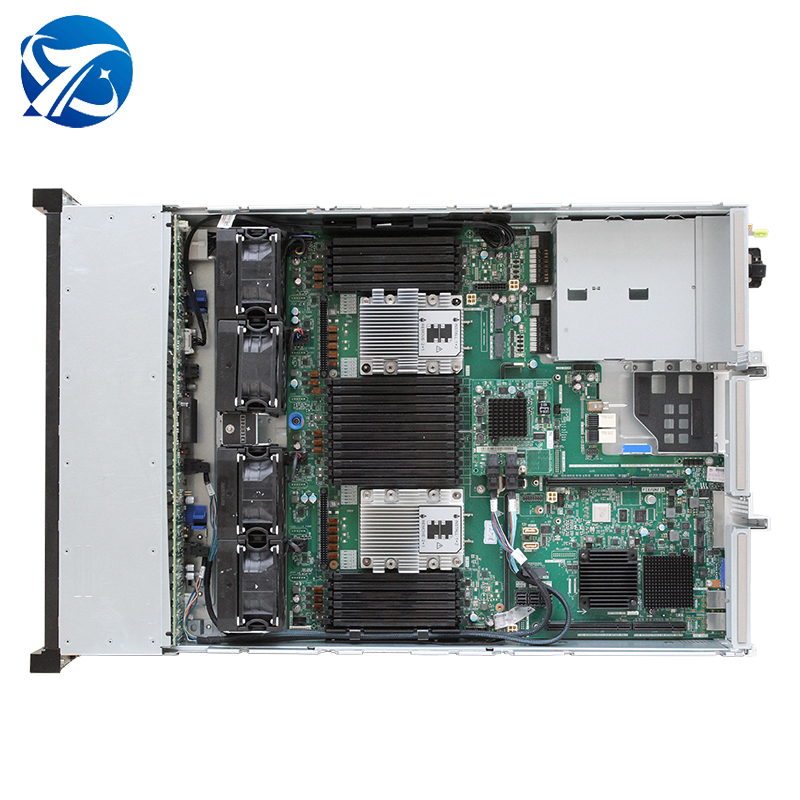

FusionServer 2288H V6 Internal Layout
FusionServer 2288H V6 Rear View

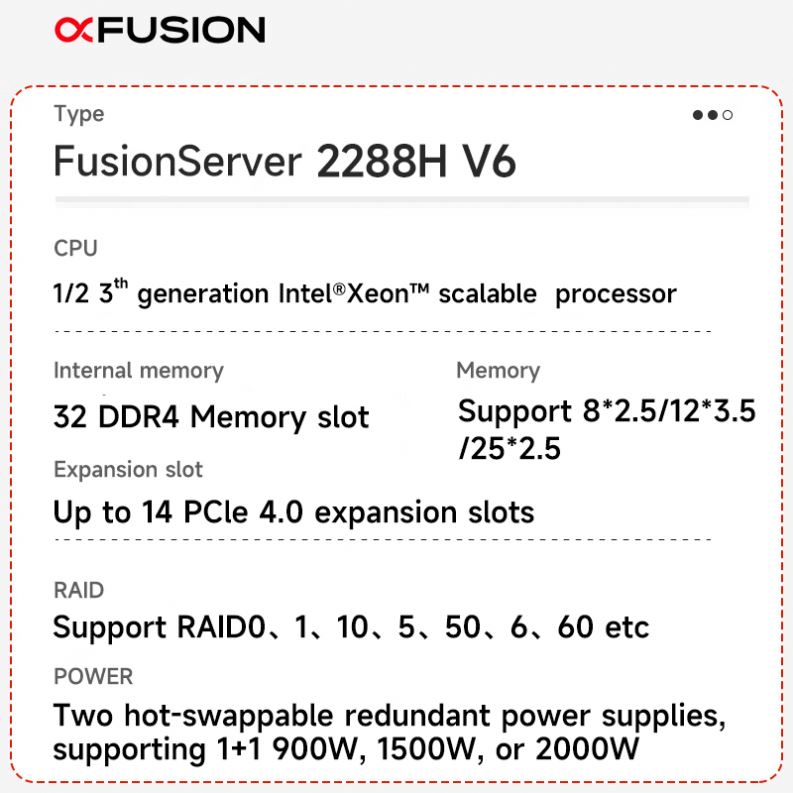

Product Parameters
Server Model FusionServer 2288H V6
Form Factor 2U rack server
Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage: Dual M.2 SSDs

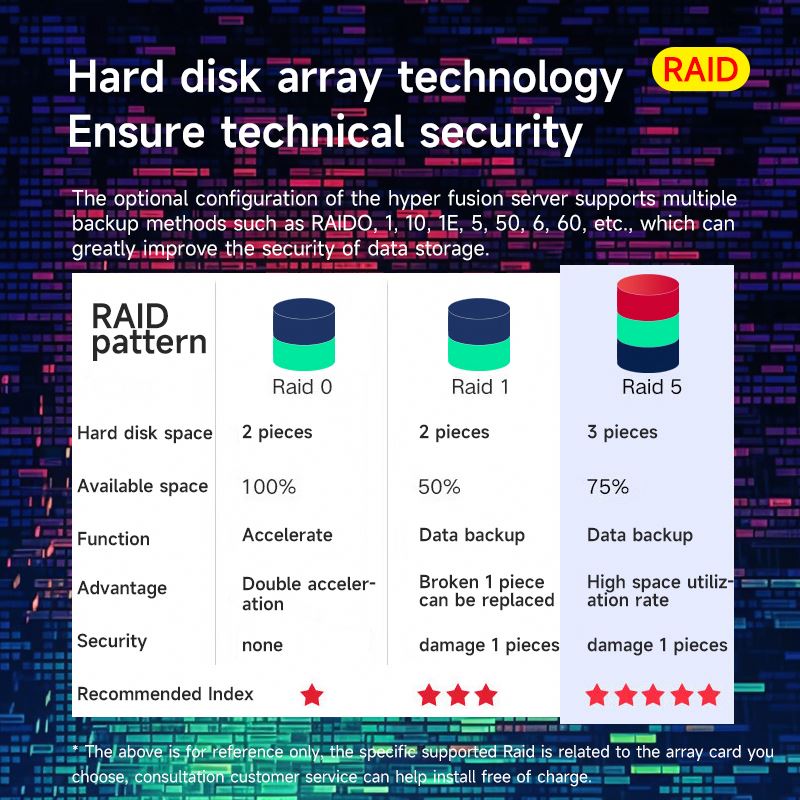

RAID Support Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively. Hot swappable function supported.
PCIe Expansion Maximum of 14 PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and 11 PCIe 4.0 slots for standard PCIe cards.
Chip Set Intel C621A
Management The iBMC chip integrates one dedicated GE management port. Supports standard interfaces such as Redfish, SNMP, and IPMI 2.0. Optional FusionDirector management software for intelligent, automatic, and visualized lifecycle management.
Operating Systems Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
Security Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Fan Modules Four hot-swappable counter-rotating fan modules in N+1 redundancy mode.
Operating Temp 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant).
Dimensions 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
Power Supply Two hot-swappable PSUs in 1+1 redundancy mode. Options: 900W/1500W/2000W/3000W AC Platinum/Titanium, 1500W HVDC, or 1200W DC PSUs.
Service Capabilities
Technical Support Team
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments. Our services include computing servers, network storage, network switches, and high-performance components like CPUs, RAM, and hard drives.
Packing & Delivery
Packaging Process 1
Packaging Process 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Frequently Asked Questions
Q1: What are the primary workloads for FusionServer 2288H V6? A1: It is ideal for cloud computing, virtualization, high-performance databases, and big data processing due to its flexible configuration and high density.
Q2: How does the server manage power consumption? A2: The 2288H V6 utilizes patented DEMT (Dynamic Energy Management Technology) for intelligent power savings without compromising performance.
Q3: What type of processors does this 2U server support? A3: It supports up to two 3rd Generation Intel® Xeon® Scalable (Ice Lake) processors with a TDP of up to 270W per CPU.
Q4: What are the storage expansion options? A4: The server is highly scalable, supporting up to 31 x 2.5-inch drives, 20 x 3.5-inch drives, or up to 34 full-NVMe SSDs, along with dual M.2 SSDs for OS boot.
Q5: What is the warranty and technical support policy? A5: We provide comprehensive support with certified engineers. Most complete machine products include a 3-year warranty and a robust supply chain for rapid maintenance.
Q6: Are the internal components like RAM and SSDs genuine? A6: Yes, all components such as memory modules are original brand chips, and every server undergoes strict testing before delivery to ensure stability.
